Recommended Wi-Fi router

Introduction

This article describes the recommended Wi-Fi router that has been proven to connect Starlink to SC 3DMG and SC Pilot successfully.

We need to change the IP configuration to connect to the 3DMG and SC pilot.
Some Wifi routers do not accept changing IP configuration, and if you change the IP address, the internet connection between Wifi Router and STARLINK gets disconnected.

In this FAQ, we recommend the below Wifi router which has already been tested and proven that we can do IP configuration without disconnection of STARLINK internet.

Explanation

https://www.wavlink.com/en_us/product/WL-WN572HE4.html

Router Name:

WAVLINK WING 12ML - AC1200 High Power Wi-Fi Outdoor 4G LTE Mesh Router

Model: WL-WN572HE4

Overview:

WL-WN572HE4 consists of four external antennas with 2.4G and 5G two frequency bands, making it possible to cover hard-to-reach dead zones; to deal with extreme weather, it is made of waterproof, heat-resistant materials.

1xMicro SIM Card Slot
Compatibility for SIM cards in 100+ countries
• Support TDD/FDD-LTE/TD-SCDMA/HSUPA/HSDPA/UMTS/DC-HSPA+ Networks
• Fast LTE CAT4, Speed: 150Mbps Download / 50Mbps Upload

Easy to Fix and install

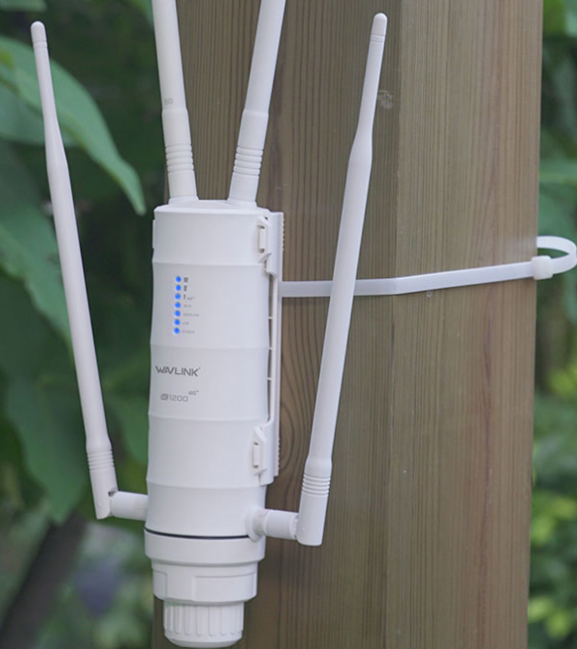

Install the external antennas, and find a fixed pole or any similar objects outside. Attach the holder to the extender and wrap the whole kit around the object to which you want to attach the extender.

Design for Harsh Outdoor Environment
This industry-leading hardware ensures that the extender can be deployed in a wide variety of environments, withstanding broad ranges of humidity and temperature (-30°C~70°C)(-22°F~158°F).

Multiple Use Scenarios
This router can work in outdoor open areas such as farms, stadiums, or construction sites. No need for a network cable, using the 4G LTE card can help a lot to use the internet in outdoor open areas.

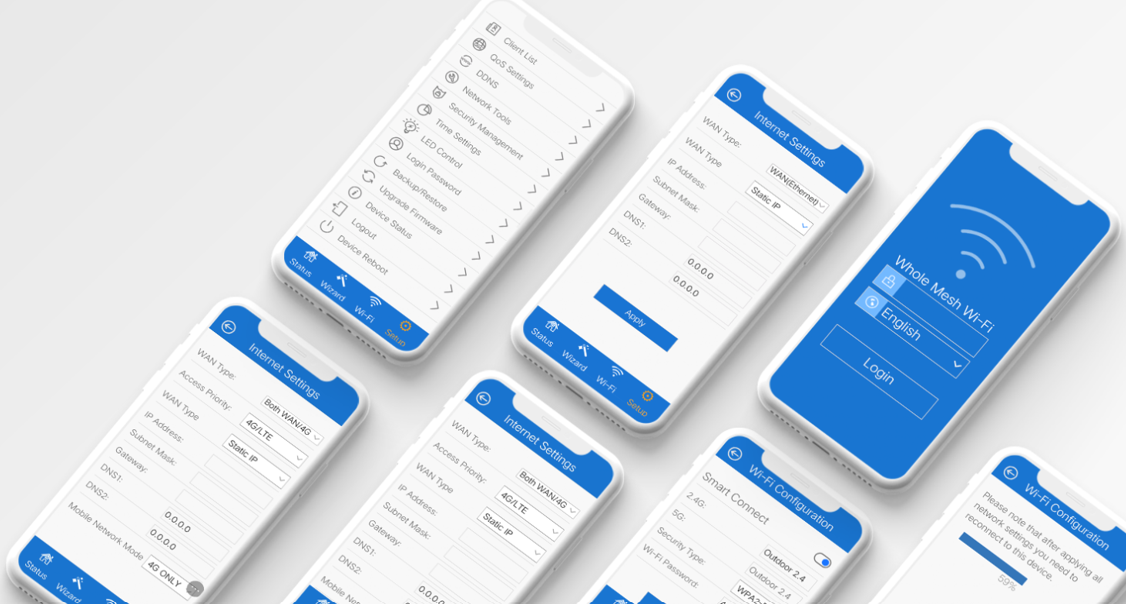

Smart APP or Web UI to Control Internet Settings
Set up in minutes with the App or Web UI, and easily manage Wi-Fi settings and monitor data usage.

Technical Specifications:

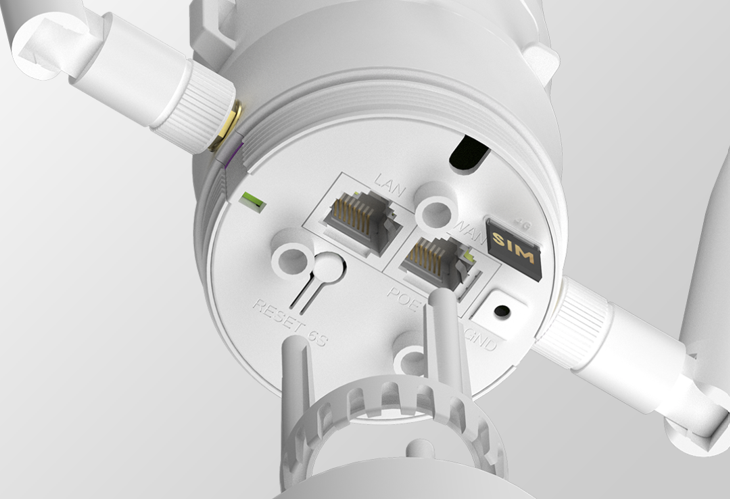

Ports
1 x WAN (Passive PoE) 1000Mbps
1 x 4G nano sim Card Slot 1 x LAN 1000Mbps

Buttons
1 x Reset button

LED
1 x Power
1 x WAN
1 x LAN
1 x WiFI
3 x Signal
1x4G Status

Solution
MT7621DA+MT7613B+MT7603E

Rated Voltage / Frequency
input:100-240 Va.c. 50/60Hz

Unit Dimensions
180mm x 50mm x 50mm (L x W x H)

WIRELESS
Standard
IEEE 802.11b/g/n/a/ac TDD/FDD-LTE/TD-SCDMA/HSUPA/HSDPA/UMTS/DC-HSPA+

Speed
802.11ac: up to 867Mbps(Wave2)
802.11n: up to 300Mbps
802.11a: up to 54Mbps, 802.11g: 54Mbps
802.11b: 11Mbps

Frequency band
2.4GHz, 5GHz

Wireless Security
WPA / WPA2, WPA-PSK，WPA2-PSK encryption

Antennas
2 x 2.4G Omni Directional Antennas
2 x5G Omni Directional Antennas
2 x 4G LTE Omni Directional Antennas

Supplementation

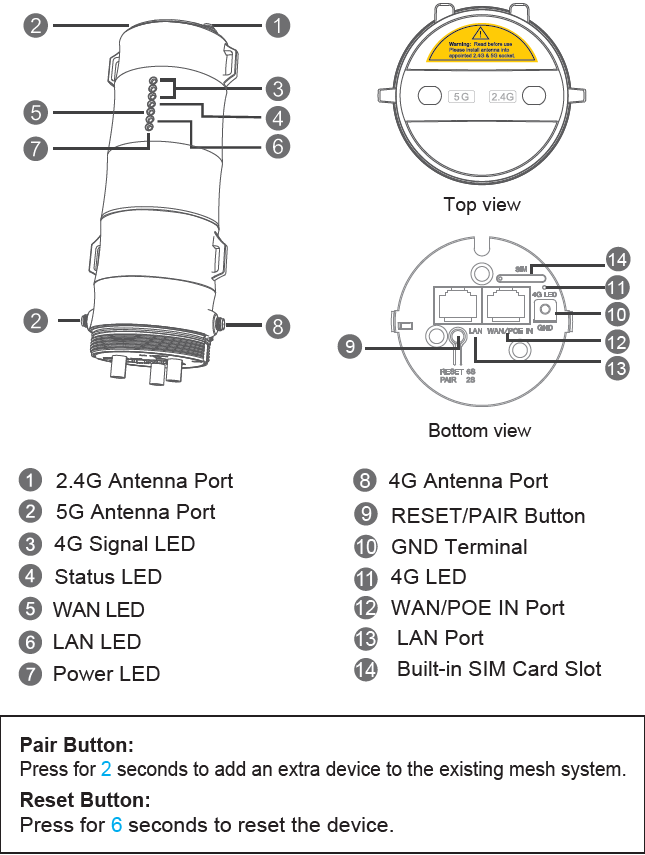

Hardware overview:

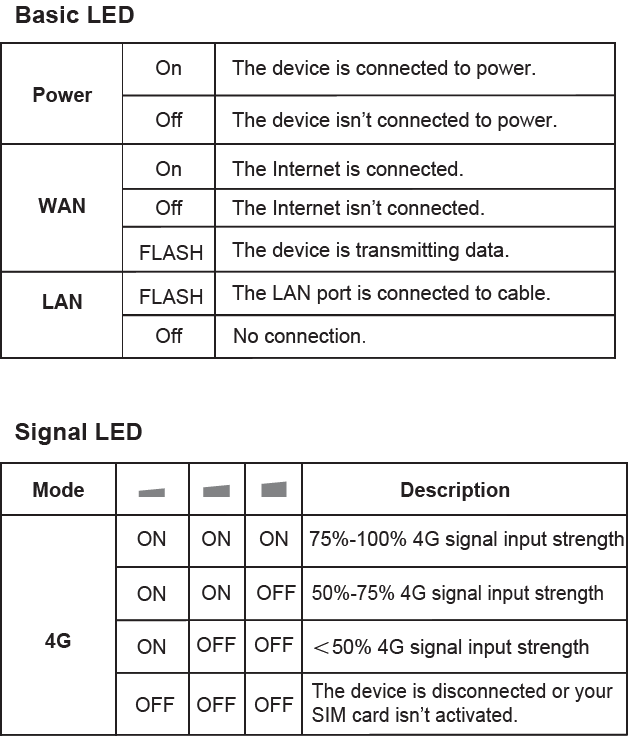

LED indicators:
