How to Setup Starlink to connect to SC Rover as Base Station using Ntrip

Introduction

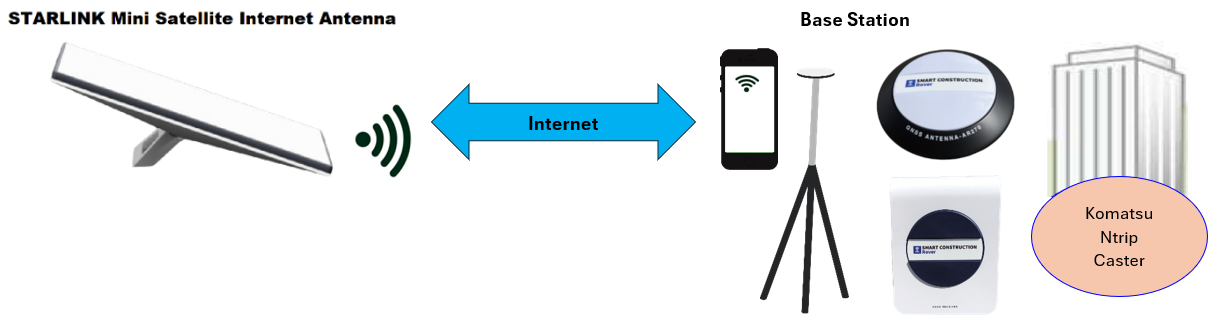

This article describes setting Starlink to connect to SC Rover as a Base Station using Ntrip.

Explanation

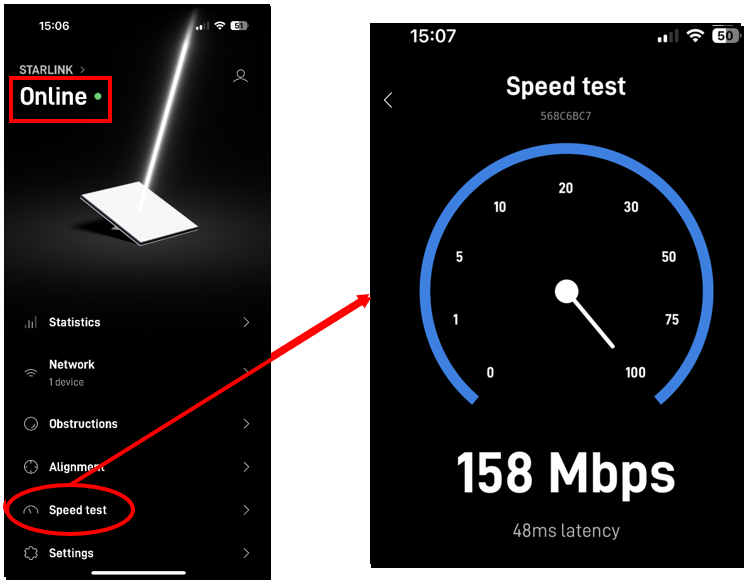

1. Make sure the Starlink is Online status. You can confirm by doing a speed test.

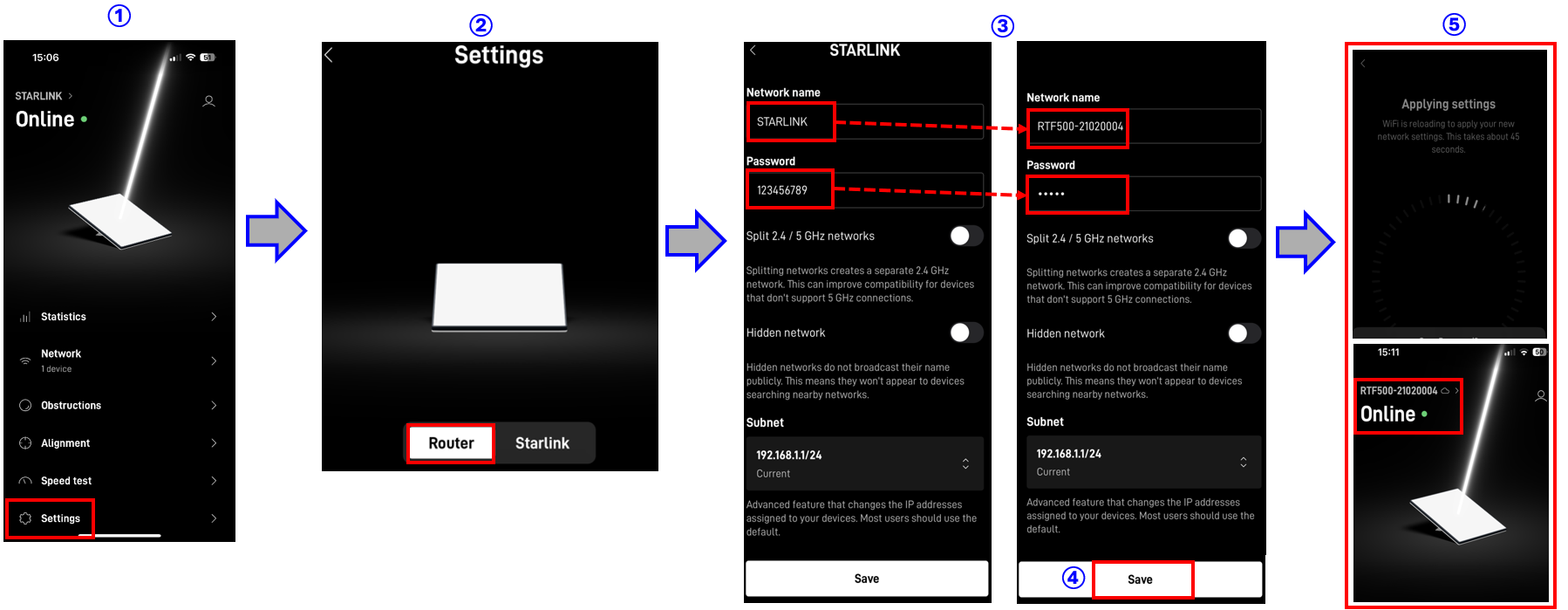

2. Configure the Starlink to communicate with SC Rover by performing the following steps:

1.) Press "Settings"

2.) Press "Router"

3.) Change "Network name" & "Password":

Network name: from STARLINK to RTF500-SN of receiver (E.g. RTF500-2102004);

Password: from default password to rtf500akt

4.) Press "Save"

5.) Confirm that the Network name was changed and the status is online.

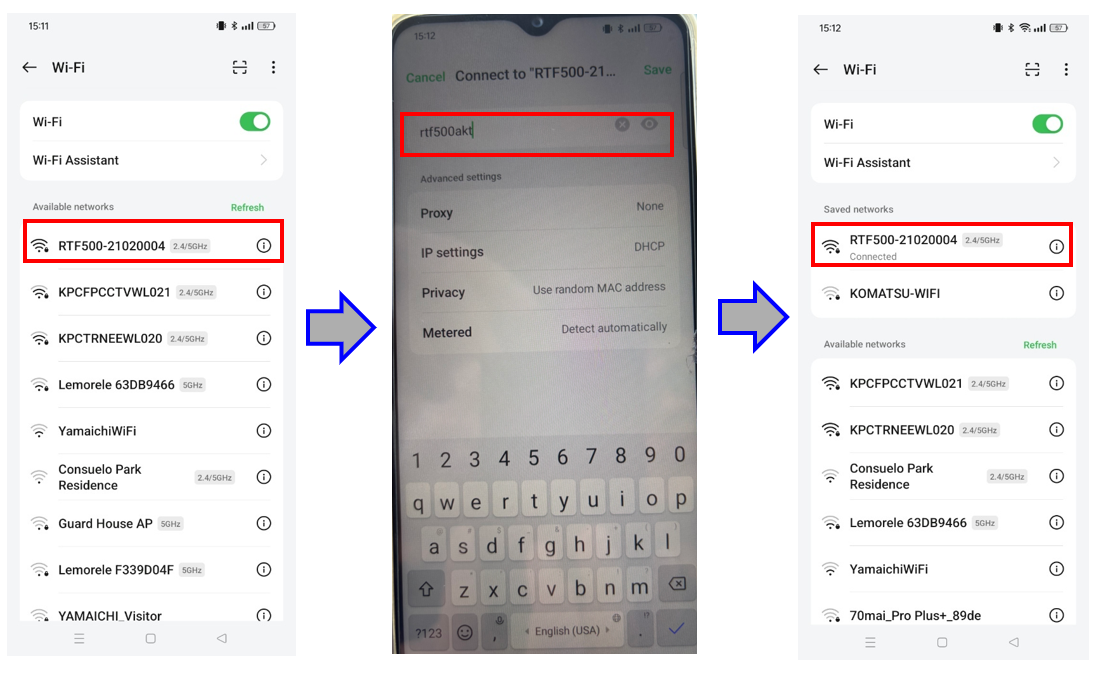

3. Connect the Android phone to Starlink through the reconfigured name "RTF500-21020004"

4. Set up SC Rover as base station using Komatsu Ntrip Caster correction data:

Please refer to this link:

https://sc-rover.zendesk.com/hc/en-142/articles/13454649445529-How-to-set-up-Smart-Construction-Rover-as-base-station-using-Komatsu-Ntrip-Caster-as-correction-data-in-RTF500
